Ford 10R80: failures, the CDF drum and repair

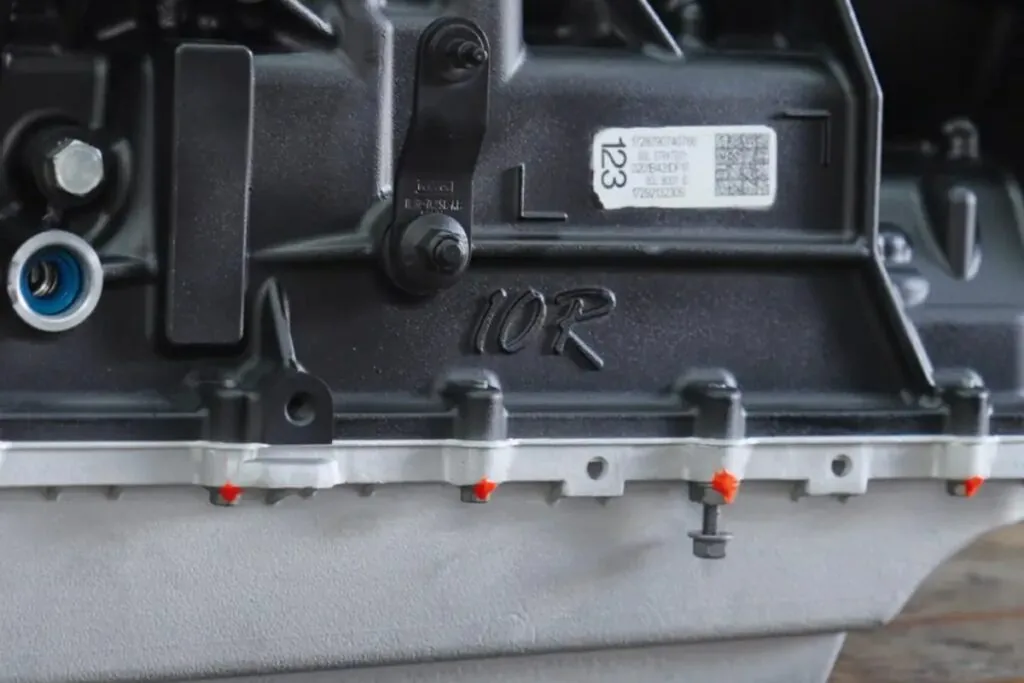

The 10R80 is a ten-speed automatic for rear-wheel drive, developed jointly by Ford and GM. It is the younger sibling of the 6R80. What sets it apart is a different fluid, different transmission software and its own typical faults. The most common workshop topic is the C-D-F clutch drum.

Which cars use it

You will find the 10R80 in, among others:

• the F-150,
• the Mustang (model years with the ten-speed automatic, including the S650),
• the Expedition / Lincoln Navigator,
• the Ranger,
• the Everest (markets outside Poland),
• selected Explorer / Aviator models and other cars with this transmission family.

Besides the 10R80, Ford also has the 10R60 and the 10R140. The design is similar, but the parts are usually not interchangeable. The CDF drum version depends on the engine and the specific car.

Typical symptoms

• a so-called flare during a gear change (engine speed jumps up for a moment), jerking, a brief loss of drive,
• shift quality that depends on temperature: good one moment, bad the next,
• gear ratio and clutch slip fault codes,
• symptoms that build up when hot and under load,
• after a valve body replacement it can get worse if the problem is in the CDF drum.

The C-D-F drum, the most common workshop topic

The inner sleeve of the C-D-F drum can move out of its factory position. The result is flare, bangs during gear changes, a brief loss of drive and poor quality shifts that an adaptation alone will not cure. Replacing the valve body often does nothing. Only a new CDF drum helps.

CDF drums are not universal. Ford has versions for different engines, with a different number of C, D and F clutch plates, for example for the 2.3, the 5.0 and the Expedition 3.5. Choosing the wrong drum during a rebuild ends in vibration and slipping, even though the transmission was assembled correctly.

Fluid and calibration

The 10R family needs the right fluid (Mercon ULV) and the correct level, checked at a specific temperature. The wrong oil causes problems with gear changes. Skipping gears is normal in this model and comes from the transmission software the manufacturer uses.

A diagnostic note: engine misfires can imitate transmission slip. We rule out the engine first.

Diagnostics at ASB

1. Interview: how the car has been used, whether it towed trailers, whether the fluid has been changed.
2. A scan of all modules and a test drive.
3. Checking the fluid.
4. Diagnostic scan tool data: slip, clutch commands, temperature.
5. Decision: valve body and solenoids, a CDF drum matched to the VIN, or a wider rebuild.

Repair routes

• solenoids or the valve body,
• replacing the CDF drum with the right one for the car,
• a wider repair after the clutch plates have burnt.

Want a quote? The scope depends on diagnostics: it looks different with a migrating CDF sleeve, different with the wrong drum from someone else's rebuild, and different again with burnt clutch plates. Write to us through the form with the VIN, the model and engine (2.3, 5.0, 3.5) and the symptoms.

Diagnostics · Repair Wrocław · 6R80 · Torque converter

Frequently asked questions

Will adaptations fix the so-called flare in the 10R80?

With calibration problems, sometimes. When the CDF sleeve has moved, usually not.

Does a CDF drum from a Mustang 2.3 fit the 5.0?

They are not compatible. The drum is matched to the VIN and the number of clutch plates.

How do I get a quote?

After diagnostics or through the form.
